How to make a file overwritable

Before using Edge App Management to upload a new file in a Docker image, a file has to be capable of being overwritten. This action is performed in the compose.yaml file found in the Edge App Workspace. Let's take an InfluxDB image as a practical example.

Add the default file to the Edge App Workspace

Before deploying an Edge App, the workspace needs a default file in its root folder. If the file is not there, the mount will not work.

Add the /config folder to the root project, create a new influxdb folder for the InfluxDB service and add the influxdb.config file to it:

Make the file overwritable

Add the following lines to the compose.yaml file. This will instruct the IXON platform to make the file overwritable:

    volumes:
      - ./config/influxdb/influxdb.conf:/etc/influxdb/influxdb.conf

Syntax explanation

It is important to take a moment and take a look at the structure and syntax of these lines:

volumes tells Docker Compose that you want to map a storage space or file between your machine (the SecureEdge Pro) and the container.
- indicates a list item, as you can add multiple files or folders.
./config/influxdb/influxdb.conf: The path on your local machine (the SecureEdge Pro). The ./ allows to look in the current directory (where the compose.yaml file lives, the Edge App Workspace) and it points to a default InfluxDB configuration file that you have created and placed there.
: indicates the separator that connects the two environments.
/etc/influxdb/influxdb.conf: The path inside the container. It tells the InfluxDB service running inside Docker to use this file as official configuration.

Final result

The complete compose.yamlfile will look like this:

services:
  influxdb:
    image: influxdb:2.7.5-alpine
    volumes:
      - ./config/influxdb/influxdb.conf:/etc/influxdb/influxdb.conf

Making multiple files overwritable

It is possible to make multiple files overwritable by following standard YAML syntax:

services:
  influxdb:
    image: influxdb:2.7.5-alpine
    volumes:
    - ./config/influxdb/influxdb.conf:/etc/influxdb/influxdb.conf
    - ./config/influxdb/extra.conf:/etc/influxdb/extra.conf
    - ./data/influxdb:/var/lib/influxdb2

How to overwrite a file on the IXON Portal with Edge App Management

After making a file overwritable, you can access the Fleet Manager's Edge App configuration options to easily overwrite an app's files by uploading a new file.

To do so, follow these steps:

Navigate to the Fleet Manager and select the SecureEdge Pro containing the Edge App that you want to overwrite files for.

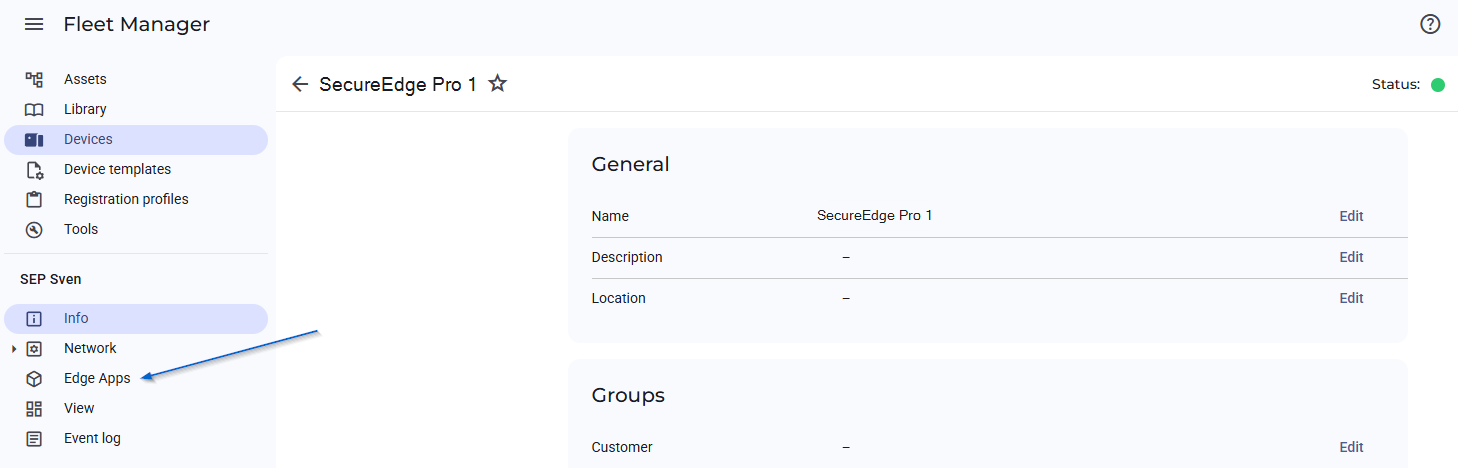

Navigate to Edge Apps:
Click on the "Configure" button:

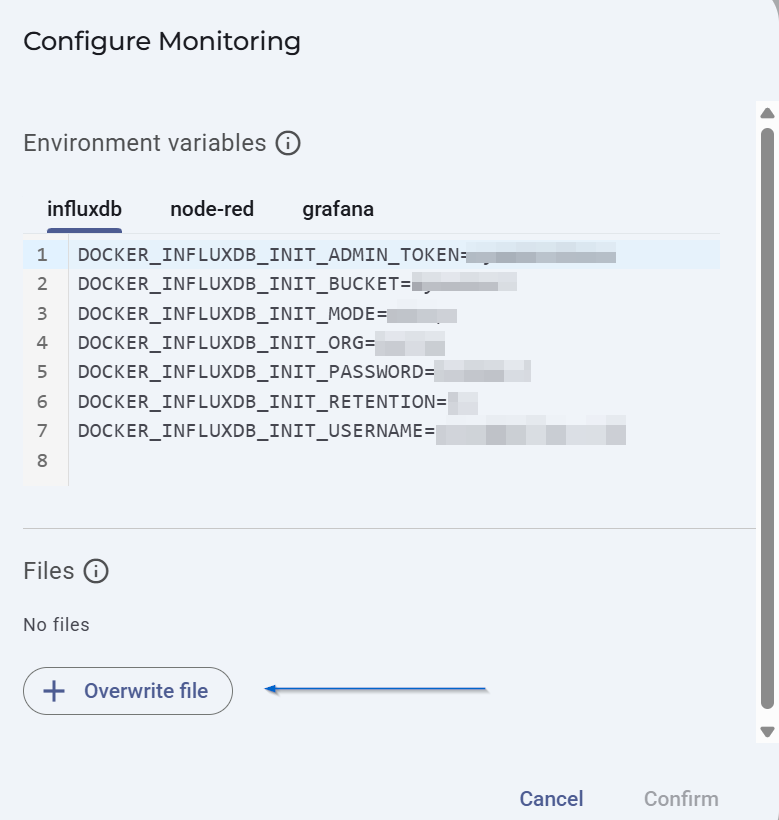

Click on Overwrite file:

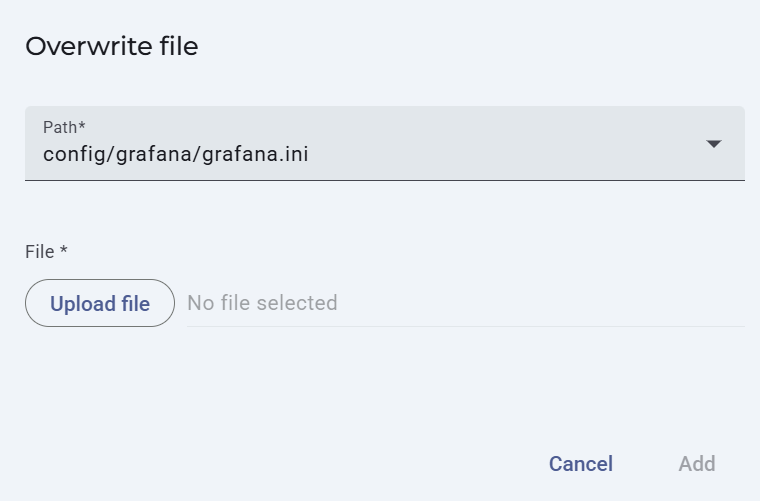

Select the path to the file that you want to replace and select a new file by clicking on "Upload file:
